Heritage Stitch Systems Industrial Collection

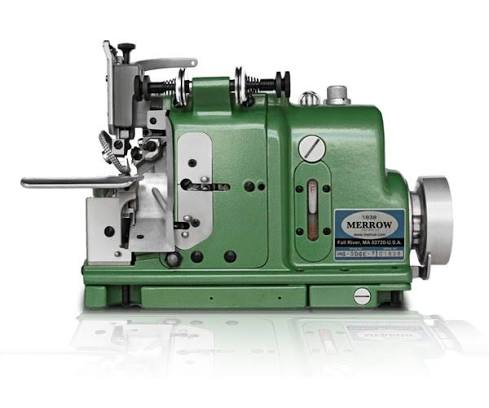

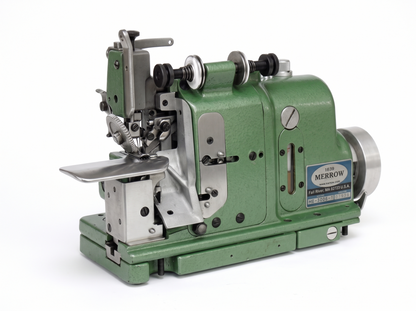

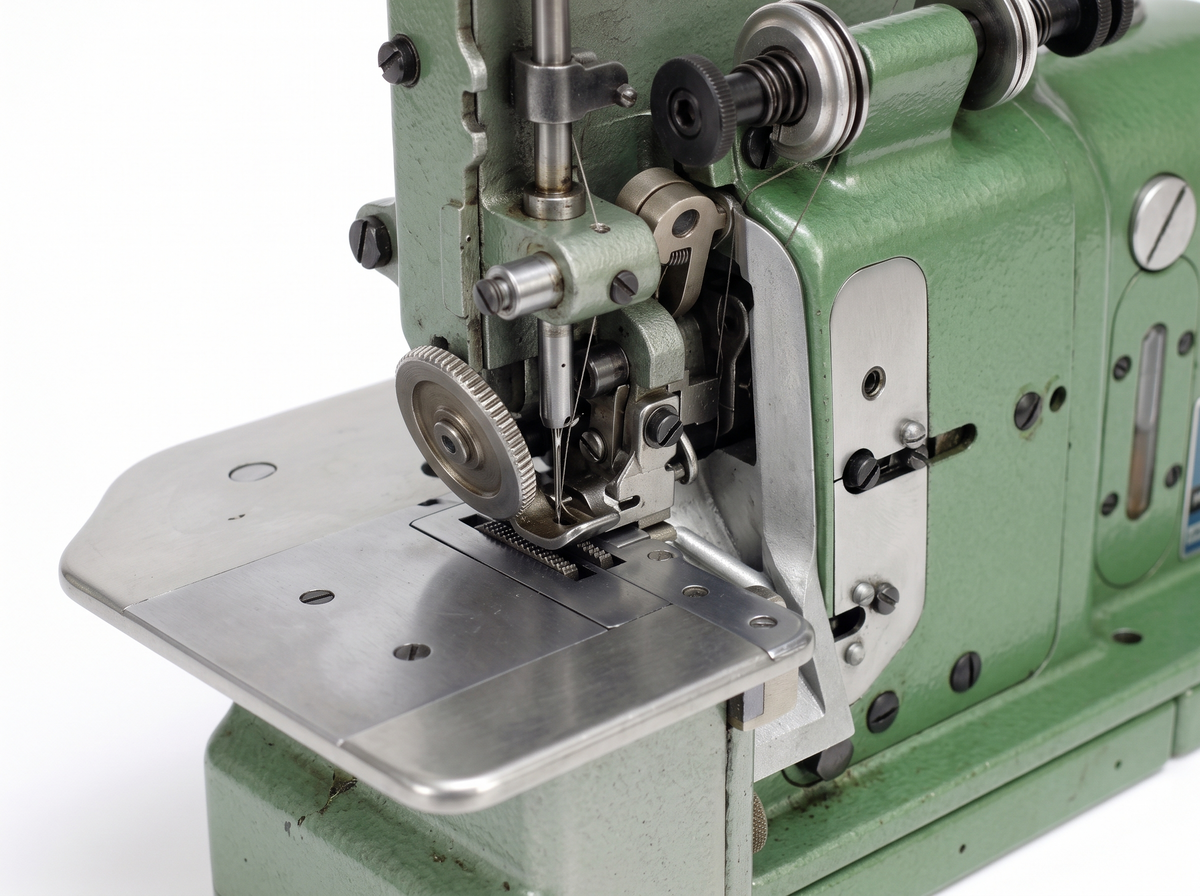

Industrial High-Speed Netting & Mesh Seaming Machine 5/32 Seam, 5500 RPM
Industrial High-Speed Netting & Mesh Seaming Machine 5/32 Seam, 5500 RPM
Couldn't load pickup availability
Share
Seaming of netting & mesh, 5/32
Product Specifications
| Specification | Details |
| Machine Purpose | Seaming of Netting & Mesh |
| Model Variants | Standard / Rolled-Stitch Version (MG-3DRGE-7) Available |
| Seam Type | 514 (Overedge Stitch) |
| Seam Width | 5/32" (~4.0 mm) |
| Operating Speed | 5,500 RPM |
| Needle / Thread Setup | Single Needle / Configured for 2 Threads (Three-Thread Capable) |
| Feed Mechanism | Single Row Differential Feed |
| Presser Foot Options | Interchangeable: Wheel Foot or Fixed Presser Foot |
| Primary Applications | Laundry bags, athletic equipment, netting, mesh |
Product Description:
Optimize your production line with this High-Speed Industrial Netting & Mesh Seaming Machine, specifically engineered to tackle the unique challenges of sewing open-weave, porous, and synthetic materials. Operating at a blazing maximum speed of 5,500 RPM, this unit delivers rapid and reliable side-seaming for mesh bags, commercial laundry nets, and heavy-duty athletic equipment.
Designed to produce a strong, secure 5/32" Type 514 seam, this machine utilizes a specialized single row differential feed system that balances fabric intake. This prevents the stretching, slipping, or puckering that commonly occurs when stitching flexible mesh. To accommodate a wide variety of mesh densities and textures, operators can easily switch between a snag-free wheel foot for open/coarse netting or a fixed presser foot for tighter weaves. For facilities requiring specialized hem finishes, a rolled-stitch version (MG-3DRGE-7) is also fully available.
Key Features:
- Specialized for Open Weaves: Purpose-built needle and feed geometry prevents skipped stitches and material snagging on synthetic nets and mesh.
- High-Speed Production: Capable of running at 5,500 RPM to maximize throughput on long bag side seams and continuous netting rolls.
- Single Row Differential Feed: Actively manages material flow to prevent stretching, twisting, and uneven feeding on flexible or slippery mesh panels.
- Versatile Presser Foot Options: Can be fitted with a rolling wheel foot for heavy, open cord netting or a fixed presser foot for standard-to-fine mesh densities.
- Secure 5/32" Seam: Produces a tight, narrow 5/32" Type 514 overedge stitch that firmly wraps structural threads to resist heavy wear and tearing.
- Rolled-Stitch Capability: Optional MG-3DRGE-7 rolled-stitch version available for specialized edge finishing requirements.
Single needle, three-thread, single row differential feed machine for side-seaming mesh bags. Rolled-stitch version (MG-3DRGE-7) available. Can be fitted with wheel foot or fixed presser foot for various mesh densities.
