Heritage Stitch Systems Industrial Collection

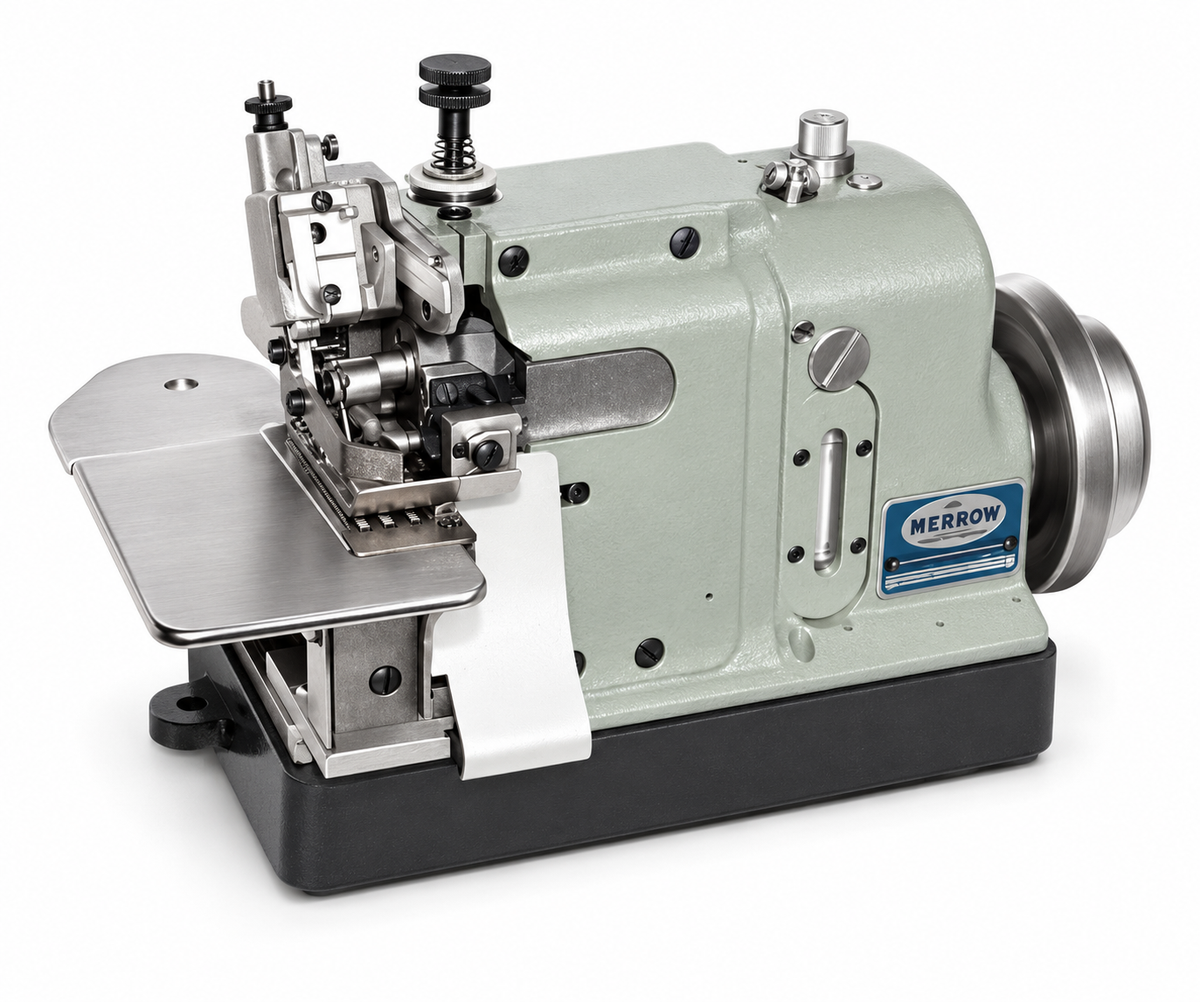

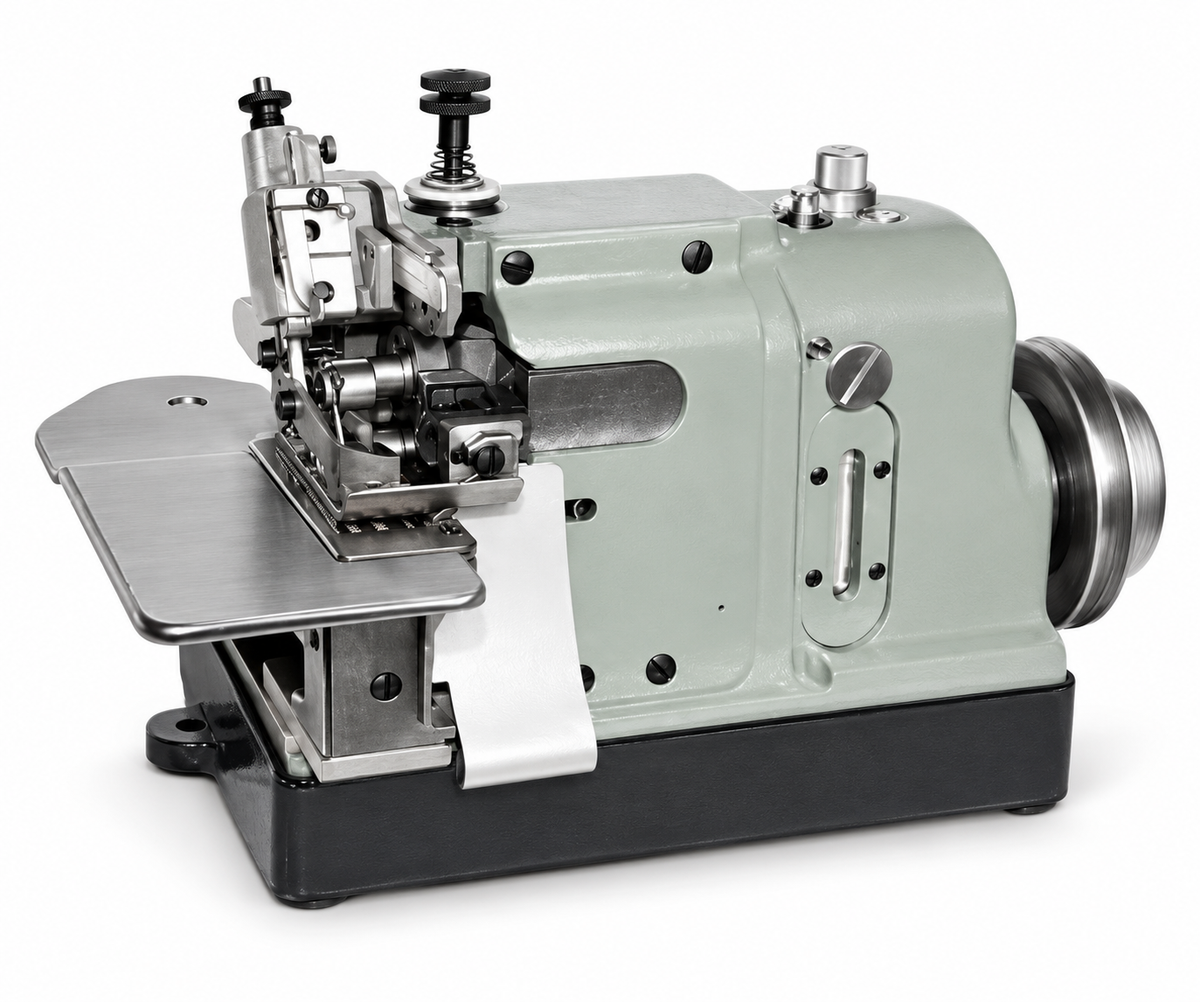

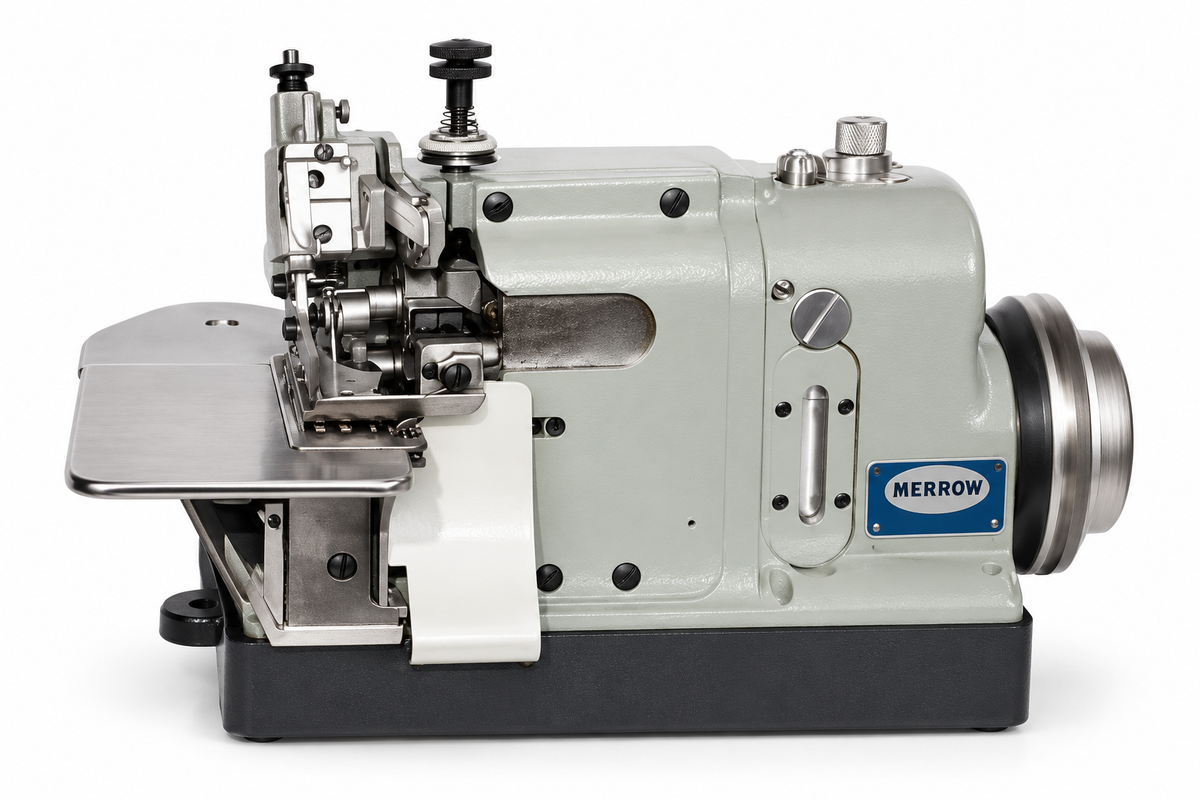

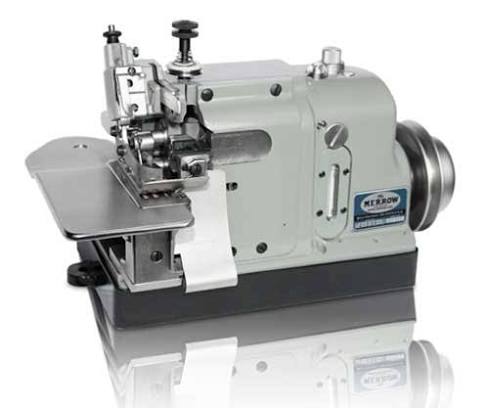

Merrow 72-D3B-2 Extended Feed Fabric Joining Sewing Machine – 5/8 Seam
Merrow 72-D3B-2 Extended Feed Fabric Joining Sewing Machine – 5/8 Seam
Couldn't load pickup availability
Share
Joining difficult fabrics, extended feed system
Product specifications
| Specification | Details |
|---|---|
| Brand | Merrow |
| Model | 72-D3B-2 |
| Product type | Industrial fabric joining machine |
| Feed system | Extended feed with three feed dogs |
| Cutting system | Extended cutting system |
| Seam type | 501 |
| Seam width | 5/8 |
| Operating speed | 2,250 rpm |
| Threads | 1 |
| Applications | Stretch nylon, polyester fleece, tricot, jersey knit, loose knits, wovens, carpet |
| Optional coating | Marine Layer Coating |
| Rolled-seam version | 72-D3B-2 R |
Product description:
The Merrow 72-D3B-2 is an industrial sewing machine designed for joining difficult knit and woven piece goods. Its extended cutting system and three feed dogs help guide fabric through the sewing area, supporting consistent, flat butt seams. The machine produces a single-thread Type 501 stitch with a 5/8-inch seam width at an operating speed of 2,250 rpm. merrow.com
Applications listed for this configuration include stretch nylon, polyester fleece, tricot, jersey knit, loose knits, woven fabrics, and carpet. Optional Marine Layer Coating provides improved wear and rust resistance. A separate rolled-seam version, the 72-D3B-2 R, is also available.
Key features:
- Extended feed system: Supports the handling of difficult fabrics.
- Three feed dogs: Help maintain controlled fabric movement.
- Extended cutting system: Guides material through the cutting and joining process.
- Single-thread construction: Produces a Type 501 seam.
- 5/8-inch seam width: Suitable for the specified joining applications.
- Optional protective coating: Marine Layer Coating improves wear and rust resistance.
- Rolled-seam alternative: Available as the separate 72-D3B-2 R configuration.
Designed with an extended cutting system and three rows of feed dogs, ideal for joining difficult knit and woven piece goods. Available with Marine Layer Coating for improved wear and rust resistance. Rolled seam version (72-D3B-2 R) available.
