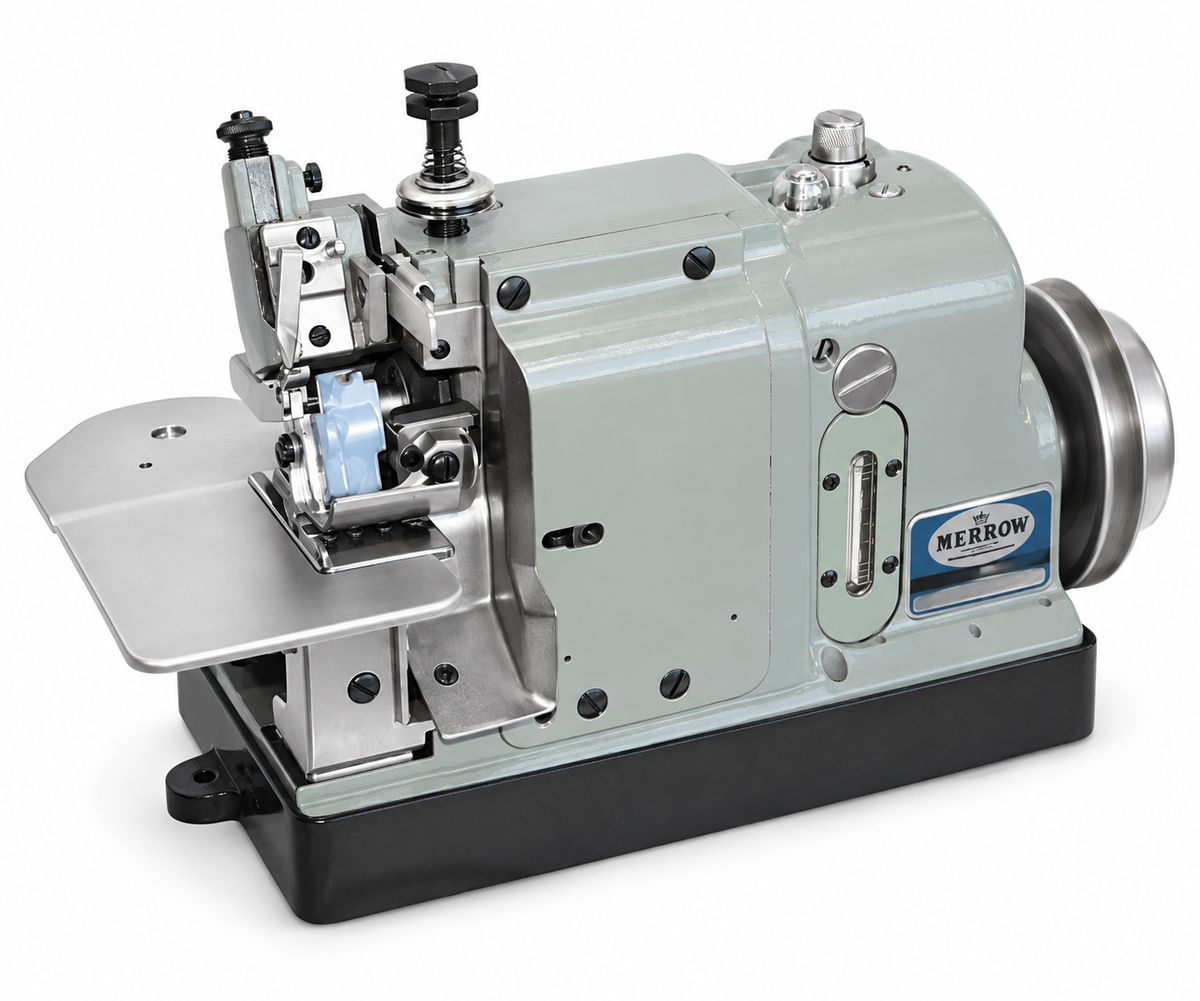

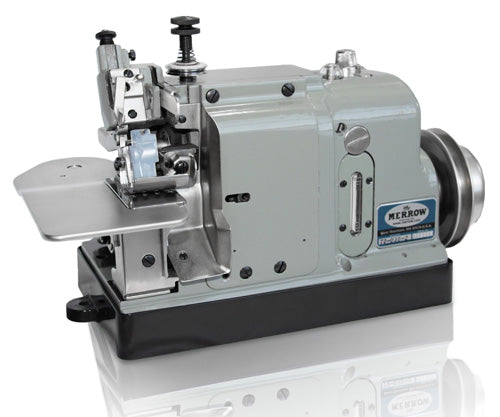

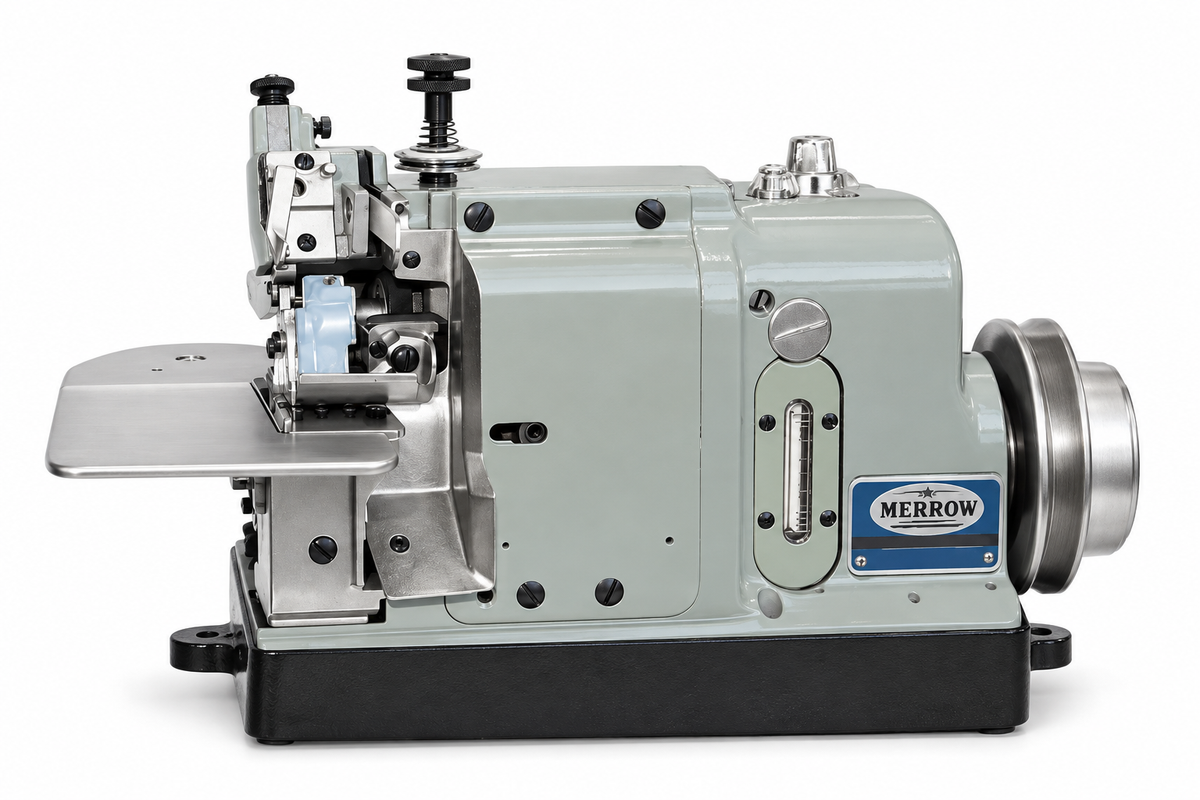

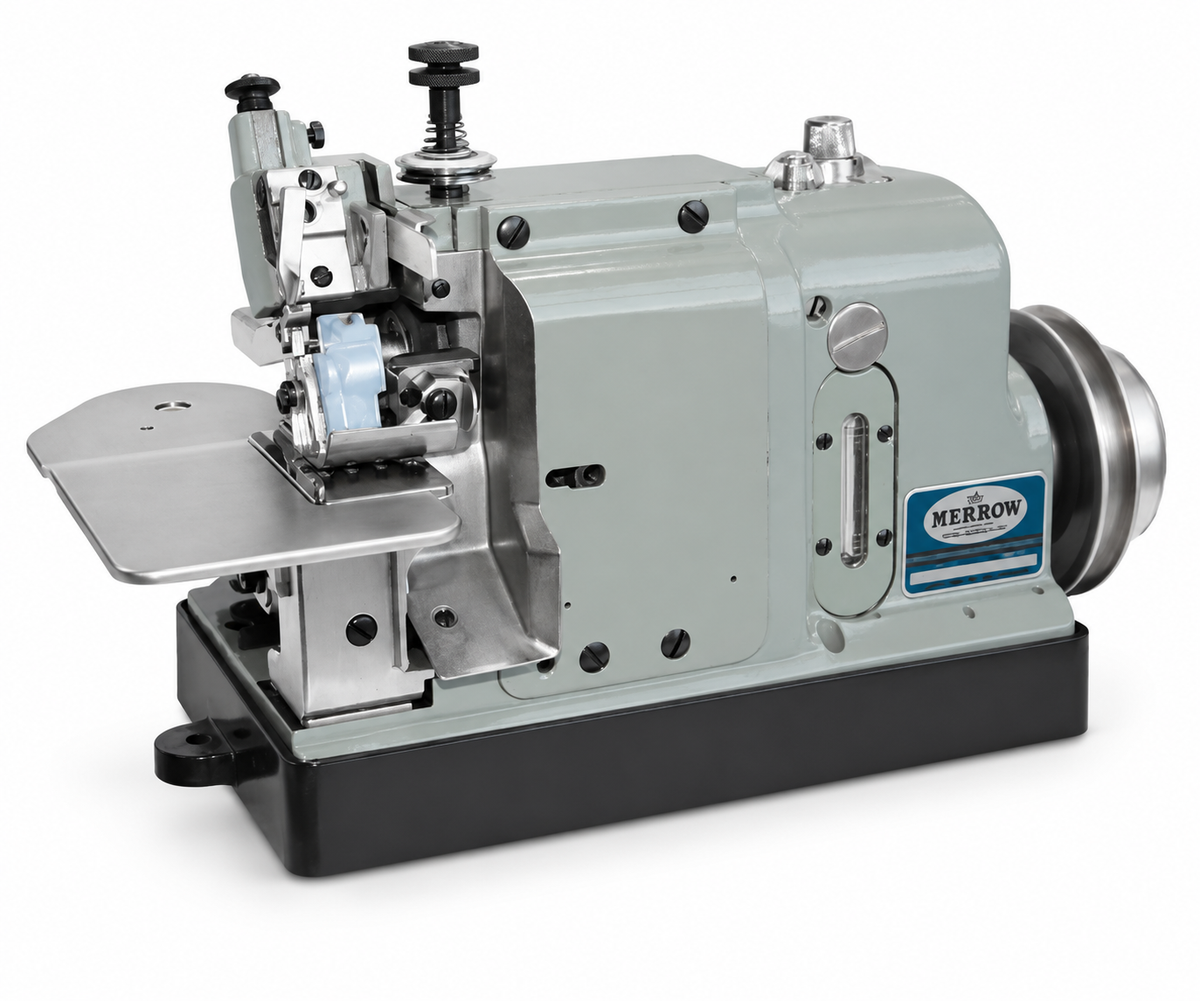

Merrow Differential Feed Gap Seaming Machine – 5/8 Flat Stitch, 1/8 Fabric Gap
Merrow Differential Feed Gap Seaming Machine – 5/8 Flat Stitch, 1/8 Fabric Gap
Couldn't load pickup availability
Share
Gapped seam - 5/8 flat gap stitch
Product specifications
| Attribute | Details |
|---|---|
| Brand | Merrow |
| Product type | Industrial gap seaming machine |
| Feed system | Differential feed |
| Seam configuration | Flat gap stitch |
| Seam type | 501 |
| Seam width | 5/8" |
| Gap between fabric ends | 1/8" |
| Operating speed | 2,250 rpm |
| Thread count | 1 |
| Material application | Thicker materials requiring non-overlapping joins |
| Process applications | Seam detection and drainage |
Product description:
This Merrow differential feed seaming machine is configured to join fabric ends while maintaining a 1/8-inch space between them. Its flat gap stitch is suited to thicker materials and applications requiring a join without overlapping the fabric edges.
The machine produces a single-thread Type 501 seam with a 5/8-inch seam width at a specified operating speed of 2,250 rpm. The differential feed system supports material movement through the sewing area, while the gapped configuration serves applications involving seam detection and drainage.
The 5/8-inch seam width describes the stitch width; the 1/8-inch gap is the space maintained between the joined fabric ends.
Key features:
- Controlled fabric gap: Maintains a 1/8-inch space between joined ends.
- Flat seam configuration: Joins material without overlapping the fabric edges.
- Differential feed: Supports controlled material feeding.
- Single-thread operation: Produces the specified Type 501 stitch.
- 5/8-inch seam width: Provides the specified flat gap stitch width.
- 2,250 rpm operation: Supports industrial fabric joining.
- Specialized applications: Suitable for thicker materials, seam detection, and drainage.
Differential feed machine configured to sew a 1/8" space between ends of joined fabric.
